Fan Netting System

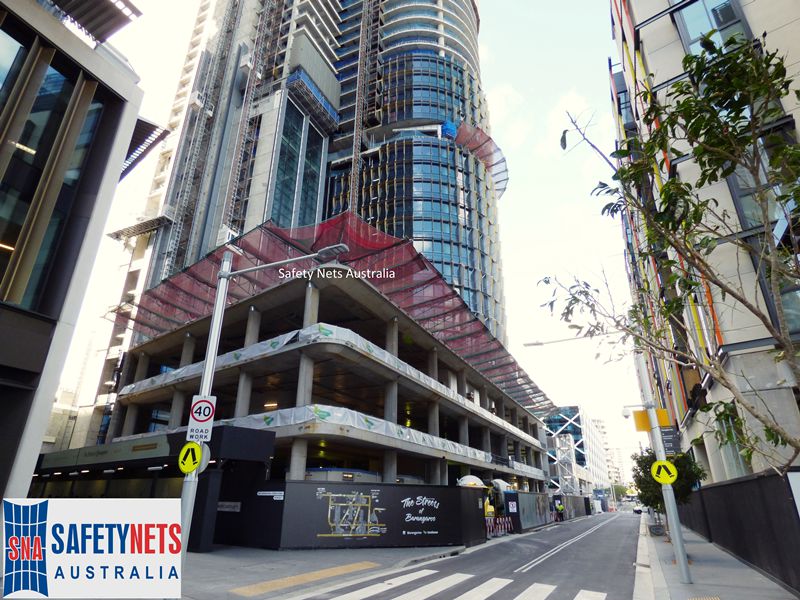

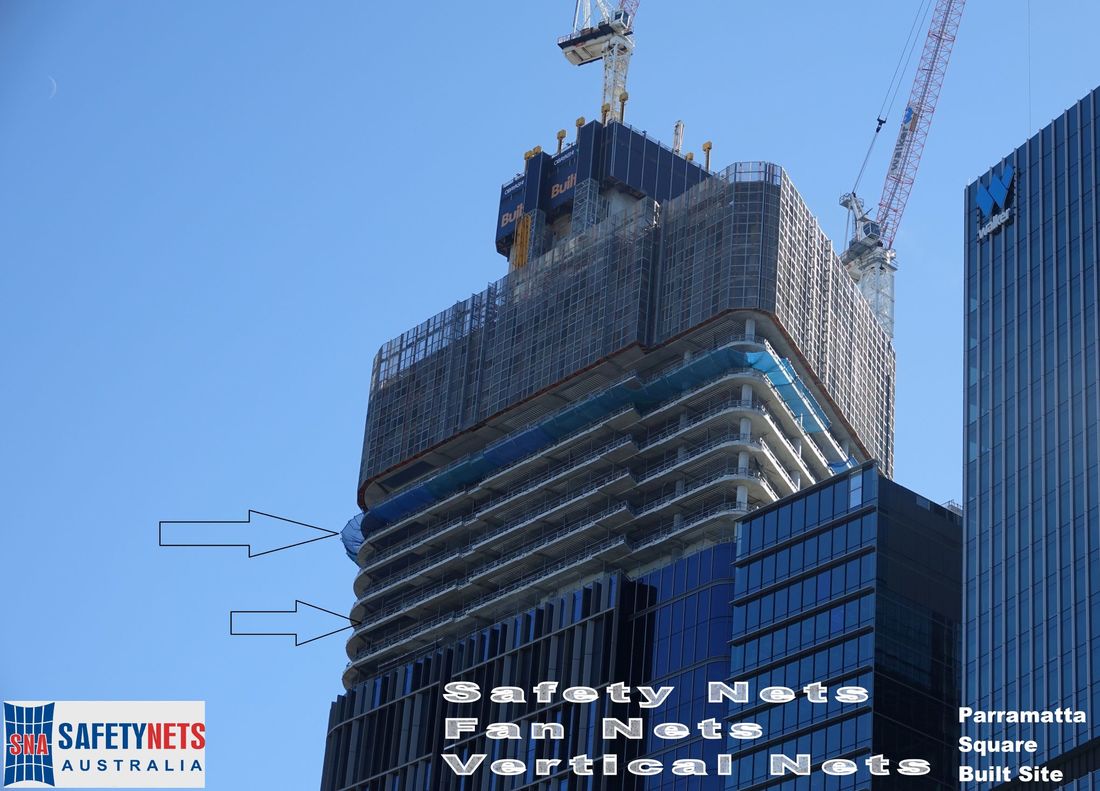

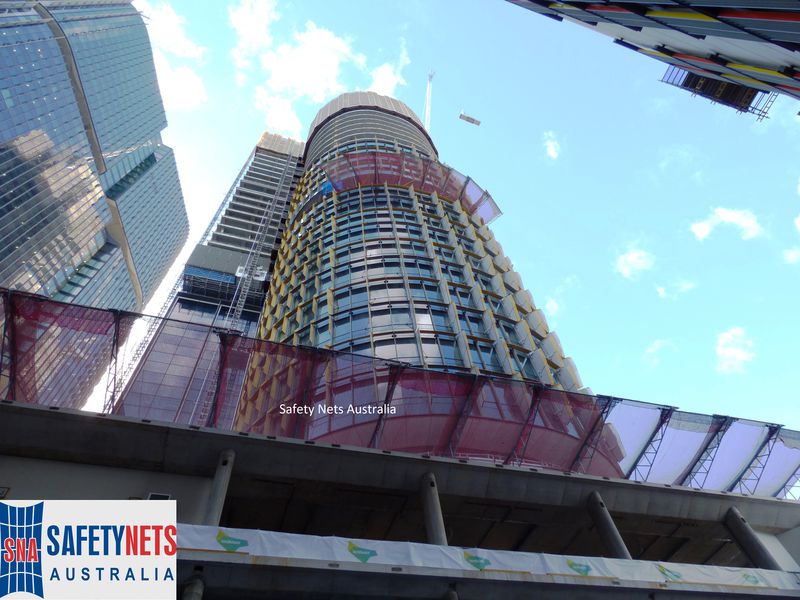

We have few types of Fan system netting. They are versatile, and installed from the inside of the building. Fan Nets can extend up to 5m with a retractable mechanism in place. The benefits of controlling falling objects through the use of fan netting systems are plenty.

Our Variable Fan Arms can now be hired with Nets to suit for your next project and if required we can do the install as well.

Our drop test has proven to arrest (capture) 100kg from the height of 10m and can withstand wind load up to 150kmh*.

Scroll down to watch the drop test below.

They are designed at a tilted angle with the impact of the fallen object is absorbed and contained,

controlling the risk and injury that can harm the public and workers.

  • It is installed from the inside of the building.
  • Can span up to 5m with loading capacity of 100kg
  • It is retractable for your convenience to shift loads through
  • It is adaptable to suit all or most buildings
  • With combined layer of various types of debris / overlay mesh to stop even the fine objects from falling through.

Click here to Download Fan Netting System leaflet.

 Netting Systems available:

  • Workright System Span up to 5m/100kg*
  • Ladder Beams up to 4m/50kg*
  • Outriggers t beams 3m/100kg/50kg*
  • *Variable Angle Fan Arms  3.2m/ 40kg*

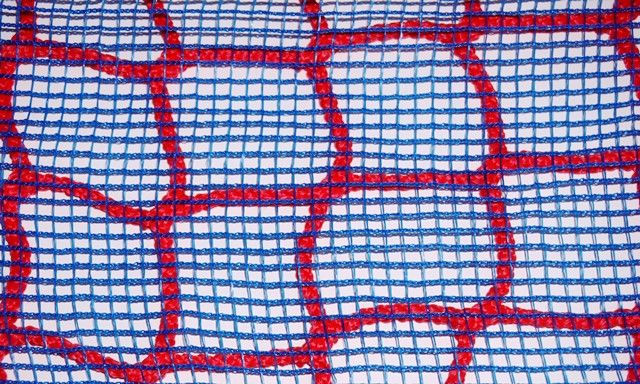

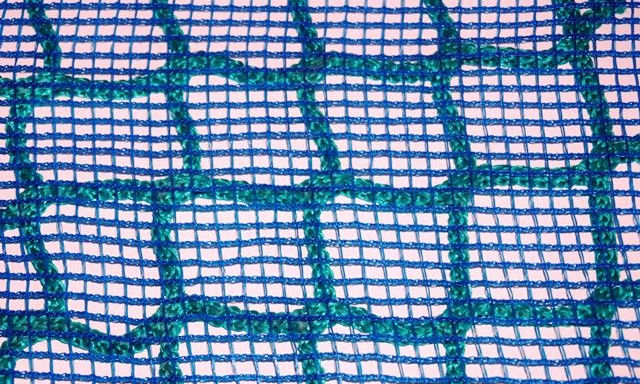

Type of Meshes available 45x45x5mm or 60x60x5mm

Fan Nets- TubeFanNet



Safety Net Drop Test
